Taped Mounted Ferrules

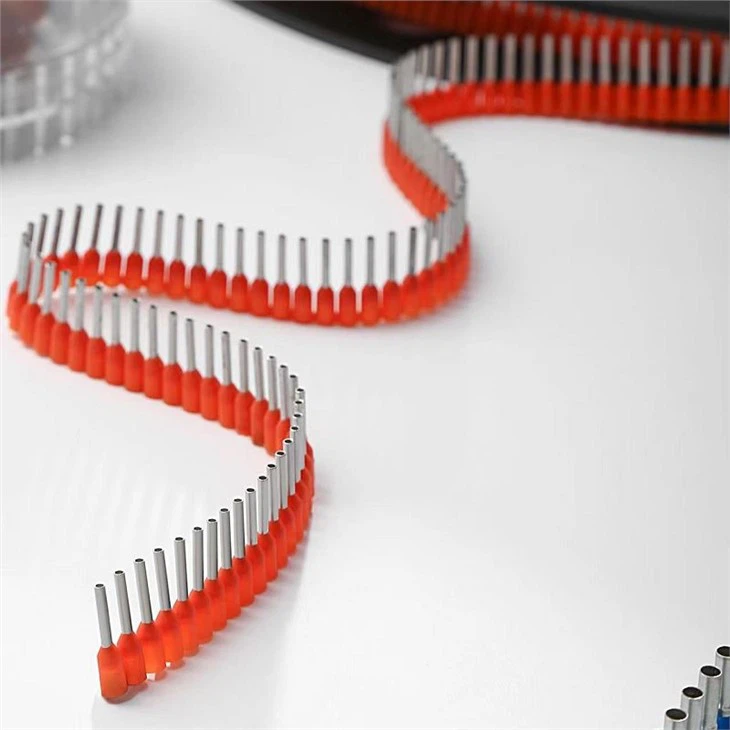

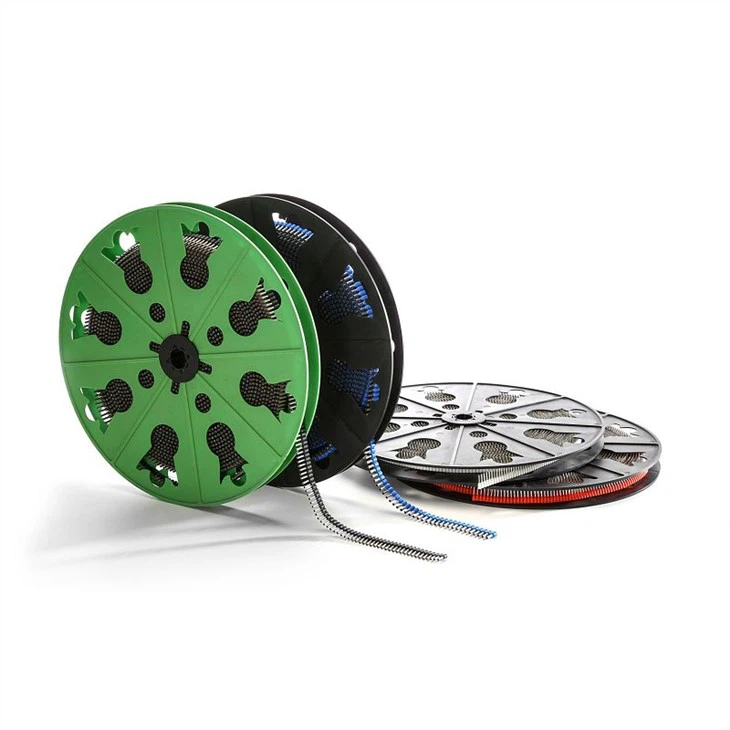

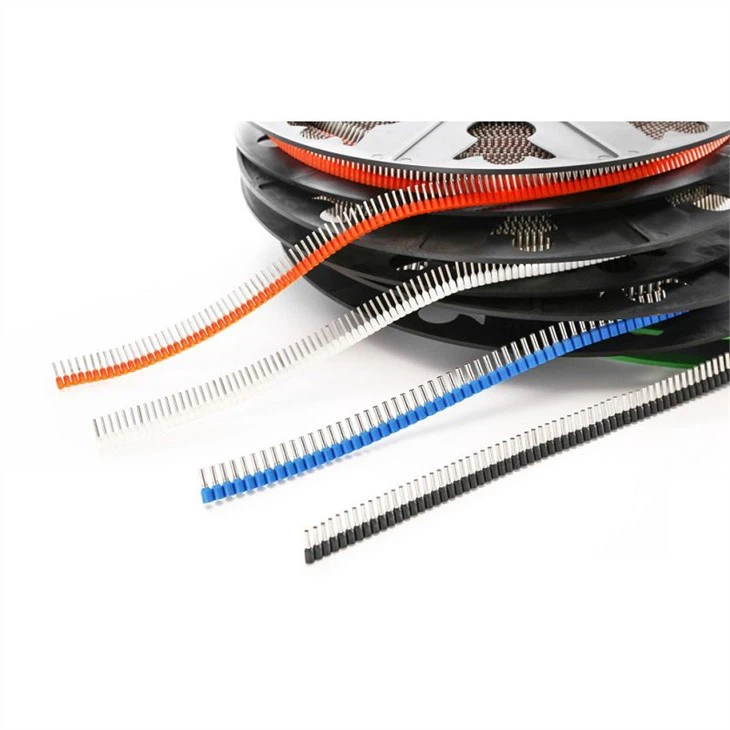

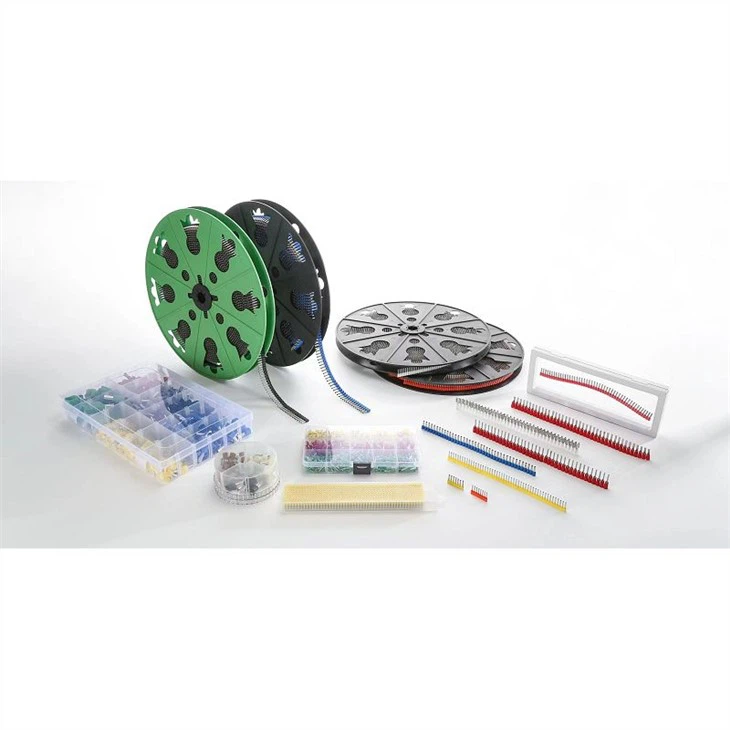

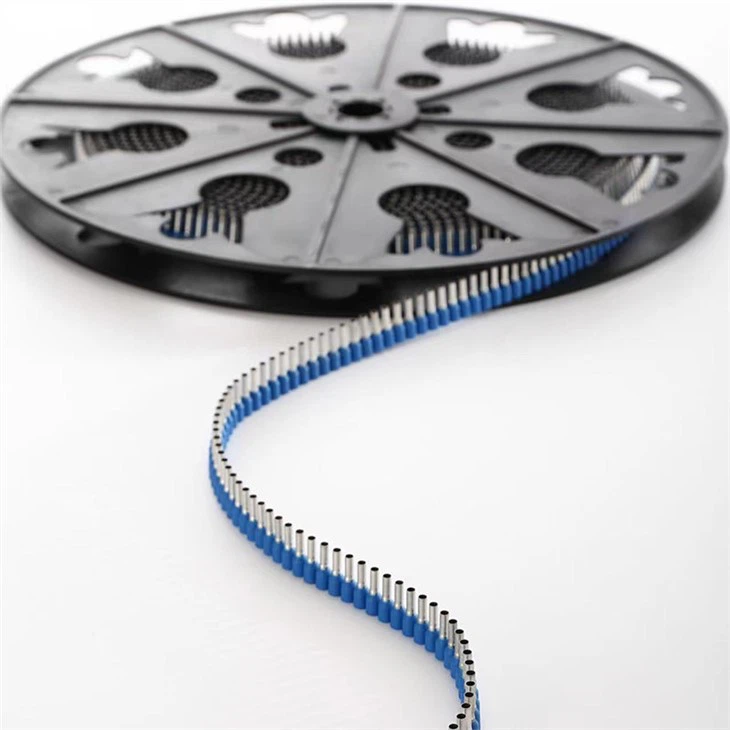

Taped mounted ferrules stranded wire into terminal blocks in single wire and double wire configurations and are insulated with polypropylene. These prevent wires from breaking and other damage.

Send Inquiry

Product Introduction

Taped mounted ferrules stranded wire into terminal blocks in single wire and double wire configurations and are insulated with polypropylene. These prevent wires from breaking and other damage. Insulated ferrules are durable and can hold up to vibration, be reconnected many times and are one of the stronger mechanical connectors.

Size	Cable size mm²	Metal length	AWG	French color	German color	DIN color
PAE0508	0.5	8	22	WHITE	ORANGE	WHITE
PAE0510	0.5	10	22	WHITE	ORANGE	WHITE
PAE0512	0.5	12	22	WHITE	ORANGE	WHITE
PAE7508	0.75	8	20	BLUE	WHITE	GREY
PAE7510	0.75	10	20	BLUE	WHITE	GREY
PAE7512	0.75	12	20	BLUE	WHITE	GREY
PAE1008	1.0	8	18	RED	YELLOW	RED
PAE1010	1.0	10	18	RED	YELLOW	RED
PAE1012	1.0	12	18	RED	YELLOW	RED
PAE1508	1.5	8	16	BLACK	RED	BLACK
PAE1510	1.5	10	16	BLACK	RED	BLACK
PAE1512	1.5	12	16	BLACK	RED	BLACK
PAE2508	2.5	8	14	GREY	BLUE	BLUE
PAE2510	2.5	10	14	GREY	BLUE	BLUE
PAE2512	2.5	12	14	GREY	BLUE	BLUE

Why choose CNBX taped mounted ferrules?

CNBX Goal is to supply and support cost-effective solutions to the electronics, cable and wire industry in the world.

We pride ourselves on excellent Customer Service and our experienced sales & service team are always on hand to give technical support to you the customer.

FQA

1. How can we get a quote?
A: Contact us with specification: such as material, design, size, shape, color, quantity, surface finishing, etc.

2. Can you help with the design?

A: Yes, Simply design free, special design need to pay.

3. What's the trade term and payment term?
A. Amount less than $5000, 100% paid before production, more than $5000 can be negotiated! T/T, Western Union, PAYPAL etc.

4. May I have new sample made with my design for confirmation?
A: Yes. Sample charge means set up charge for production line, little quantity we suggest that straight for production.

Large quantity we suggest take sample first, and sample fee can be refund.

5. How about Santing’s after-sale policy and term?
A: Yes, We romise 1 year guarantee for regular items as usual.
